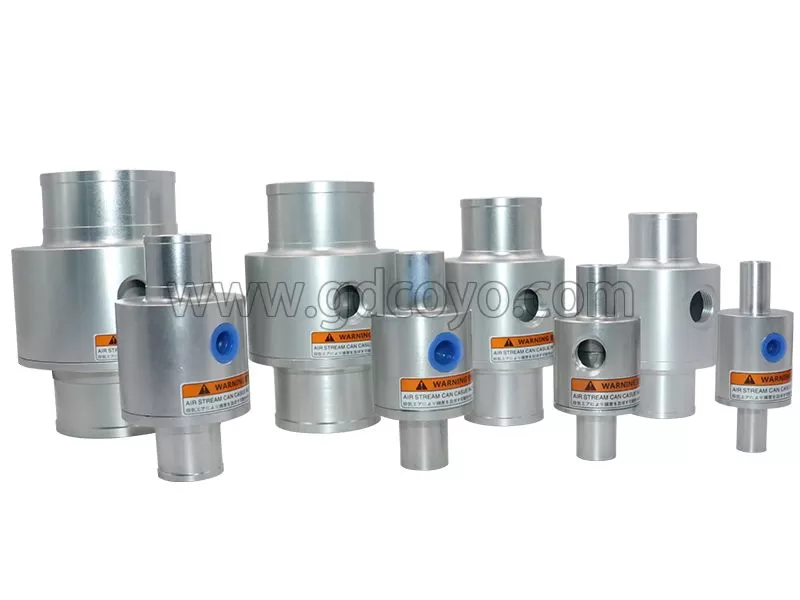

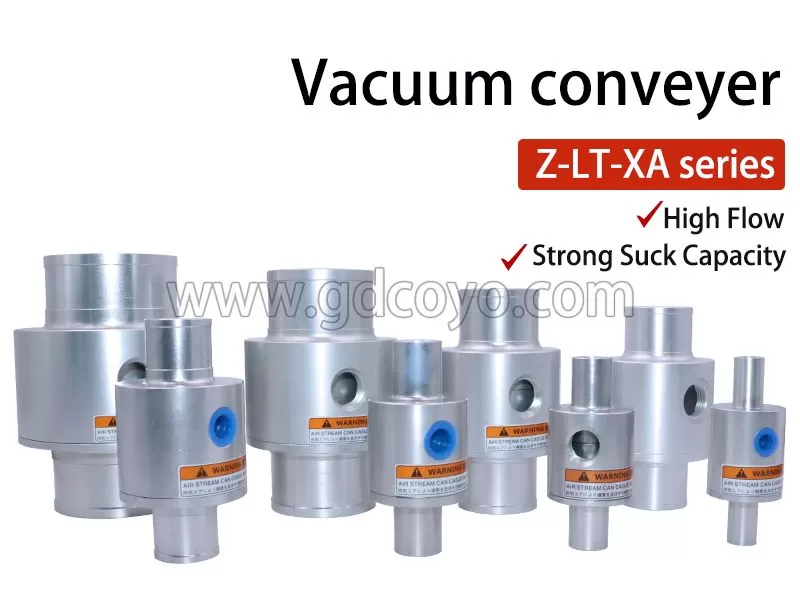

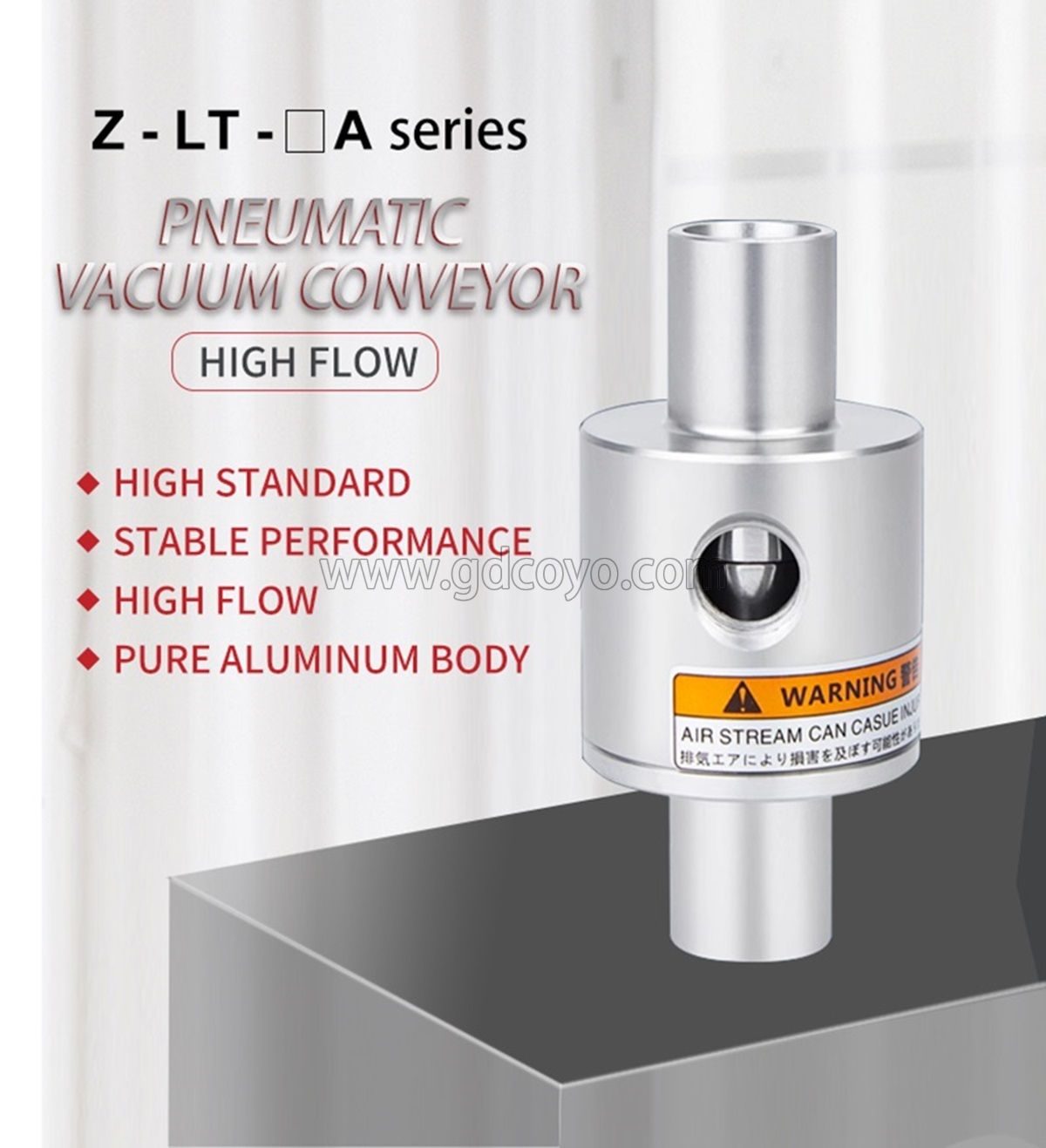

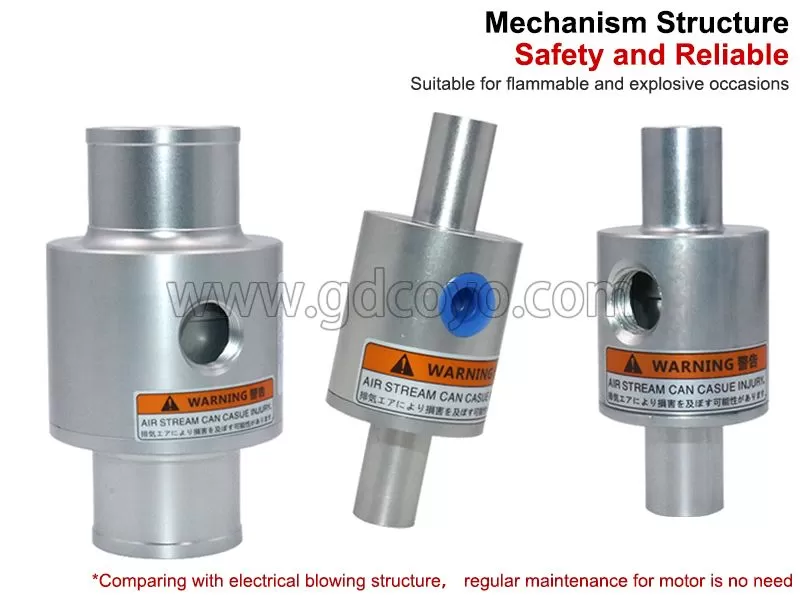

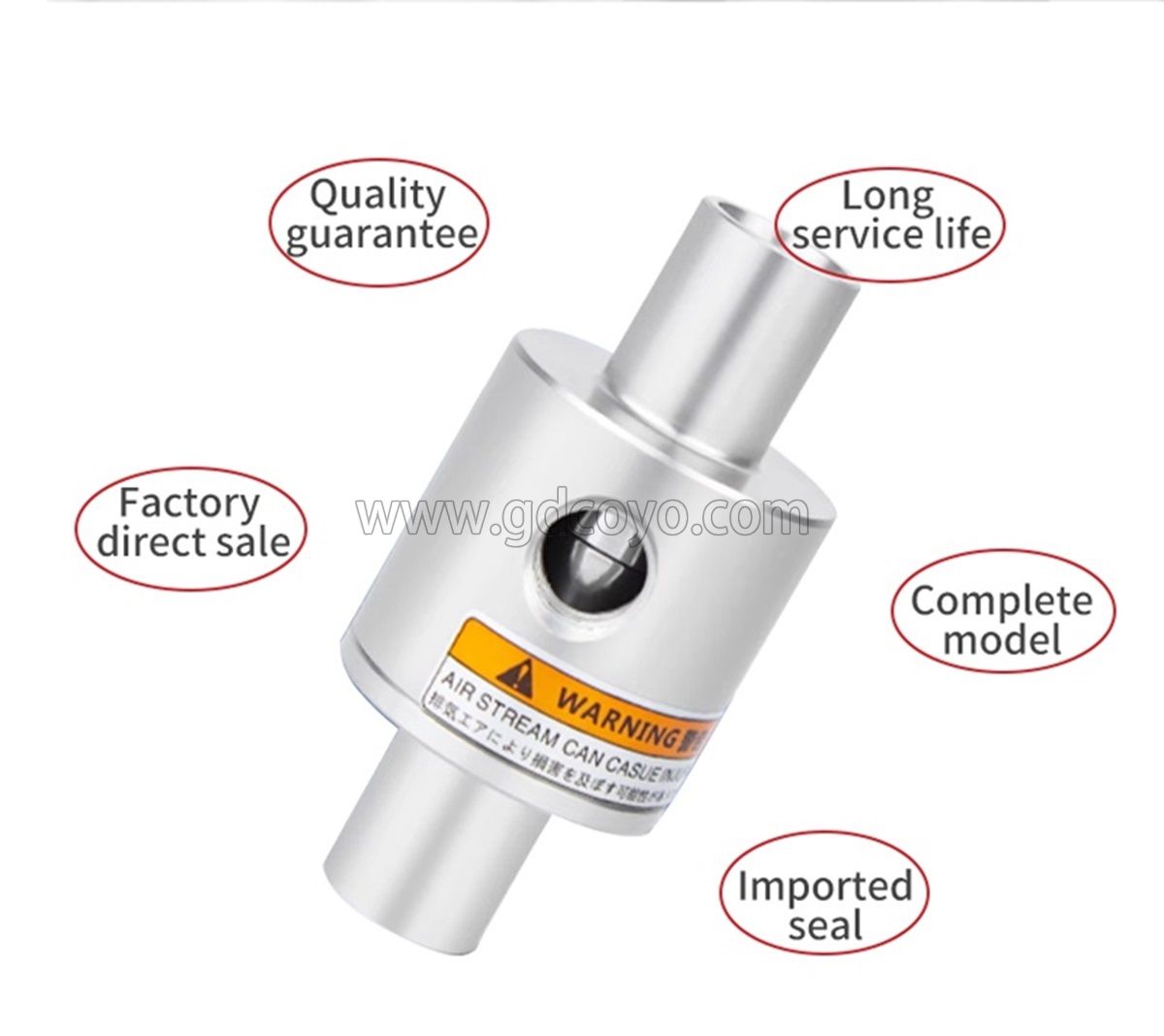

Z-LT-A Series Pneumatic Vacuum Conveyor

Working Medium: Air

Working Pressure: 0-0.9 MPa

Proof Pressure: 1.32 Mpa

Proof Vacuum Pressure: -100Kpa(10Torr)

Working Temp: 0℃~60℃

Material: Aluminum alloy

Z-LT-A Series Air Flow Amplifiers Aluminium Vacuum Conveyor

Specification Table
Model	A	B	C	D	E	F	G	H
ZH19-X187	19	34	11	53
ZH25-X187	25	44	16	62
ZH32-X187	32	51	23	70
ZH10-B-X185	73	35	19	10	13.2	16.2	69.8	31
ZH20-B-X185	119.5	55	32	15	19.5	23.5	111	48
ZH30-B-X185	158	68	50	20	24.5	28.5	146.5	61
ZH40-B-X185	201	88	64	25	27.2	33.5	196	74.5

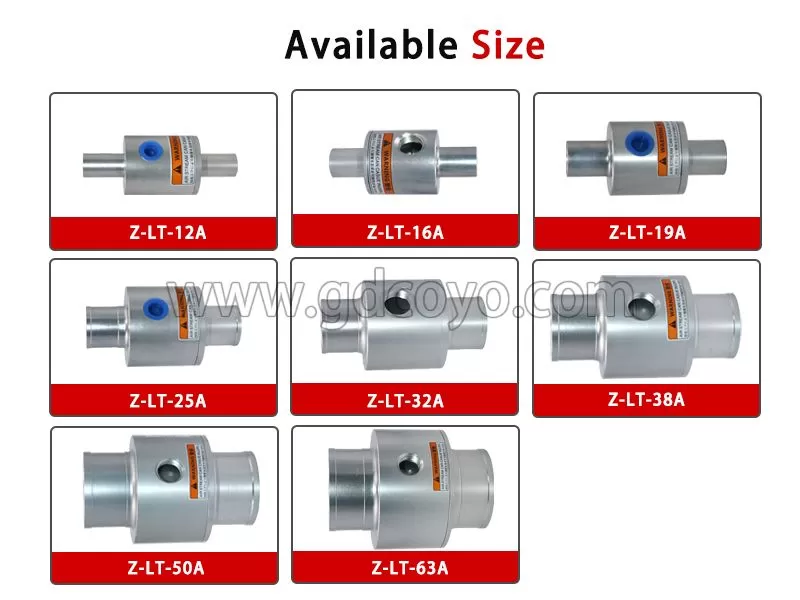

Z-LT-12A	12	7	30	76	20	RC1/4
Z-LT-16A	16	11	34	76	20	RC1/4
Z-LT-19A	19	14	39	83	22	RC1/4
Z-LT-25A	25	19	49	92	24	RC1/4
Z-LT-32A	32	25	54	96	25	RC3/8
Z-LT-38A	38	32	59	104	28	RC3/8
Z-LT-50A	50	42	73	112	32	RC3/8
Z-LT-63A	63	54	93	122	34	RC3/8
Z-LT-16B	PT3/8	11	34	72	18	RC1/4	19	11
Z-LT-19B	PT1/2	14	39	79	20	RC1/4	23	13
Z-LT-25B	PT3/4	19	49	92	24	RC1/4	30	18
Z-LT-32B	PT1	25	54	96	25	RC3/8	36	18
Z-LT-38B	PT1 1/4	32	59	104	28	RC3/8	46	21
For more specifications, please contact customer service.
