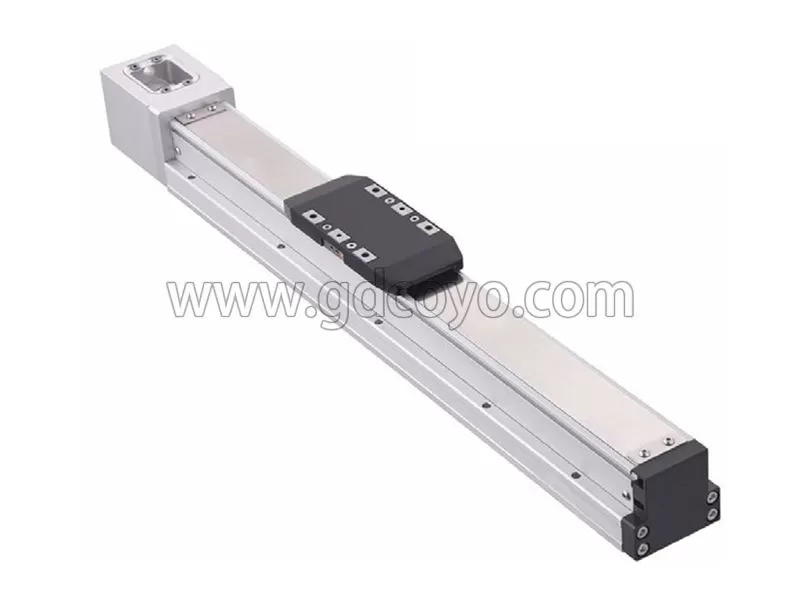

Rail embedded screw slide table

Share:
Product NumberProduct NameTypeSpecification DescriptionFeatures
STH8-BC-600Rail embedded screw slide tableSlide/ModulePosition repeatability ±0.01mm, screw lead 5/10/20, maximum speed 250/500/1000, fixed thrust 683/341/174, standard stroke 50-1050mm/50 intervals, AC servo motor capacity 200.The outer rail is adopted, which is compact in appearance and high in rigidity. Three width specifications of 54mm, 82mm and 120mm. Maximum transportable weight: 110KG (horizontal), supports large lead. External oil supply, easy maintenance. It can be installed from top to bottom without disassembly.
